Building a Custom AEM Text Component with Dialog, HTL & Deployment

In AEM implementations in the real world, development of components that are reusable and user-friendly is vital in order to ensure the scalability of the content architecture. The process involves developing a new Text Component from scratch, from inception through deployment and testing.

Quick Overview

The task was to create a component which is the following:

• Addable from AEM component browser
• Allowing user inputs using a dialog (Rich Text Editor)
• Rendering dynamic content through HTL
• Package deployable using Maven
• Compatible in Author and Publish environments

Component Structure

The component is developed from:

/apps/myproject/components/textcomponent

Important settings:

jcr:primaryType="cq:Component"

jcr:title="Text Component"

componentGroup="My Project"

sling:resourceSuperType="core/wcm/components/text/v2/text"

As a result of inheriting from the Core Text Component, rich text editor capabilities can be automatically utilized.

Authoring Dialog (Granite UI)

To provide input for the author via the Granite UI component, a dialog can be created in the following way:

Dialog Configuration:

<text

sling:resourceType="granite/ui/components/coral/foundation/form/richtext"

fieldLabel="Text"

name="./text"/>

This will provide an RTE (Rich Text Editor) type of user interface that allows users to enter content with formatting.

HTL Rendering

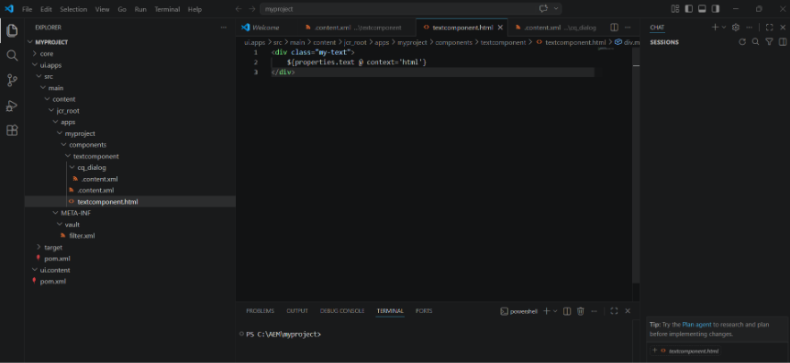

The component output is handled using HTL:

<div class="my-text">

    ${properties.text @ context='html'}

</div>

This ensures:

• Dynamic binding of authoring content
• Safe HTML content rendering
• Clean separation of presentation and logic

Build and Deploy

The component is packaged with Maven:

mvn clean install

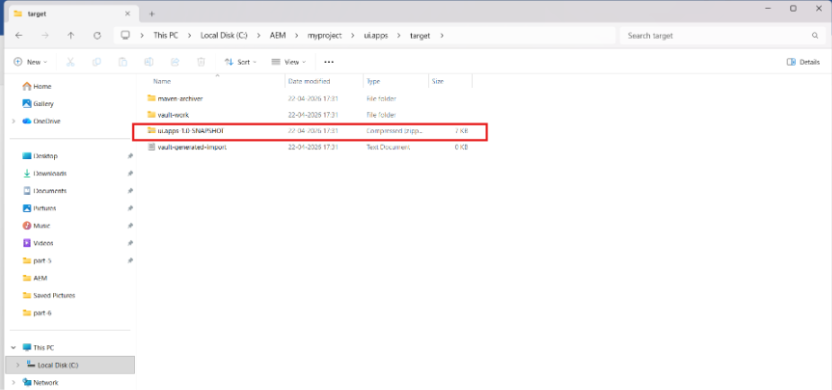

This results in a deployable content package:

ui.apps-1.0-SNAPSHOT.zip

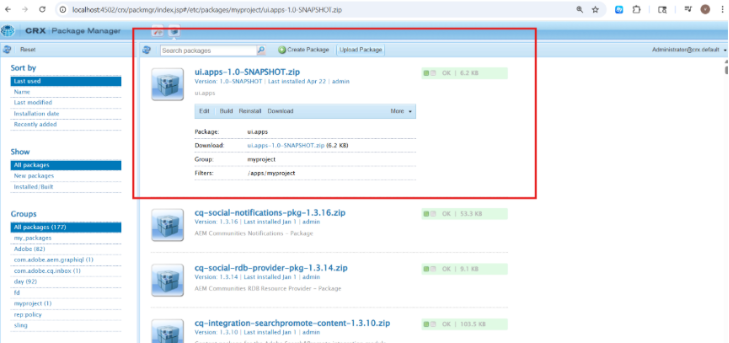

The package is installed through the CRX Package Manager and the component is available in the AEM instance.

Template Integration

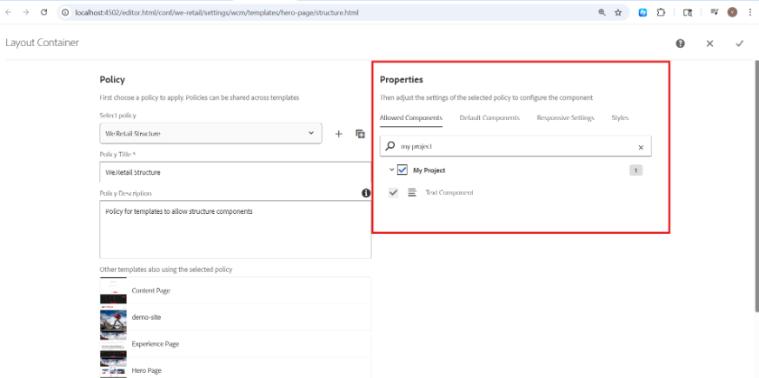

To make the component available to authors, it needs to be specifically allowed in the template:

• Open Template Editor
• Select Layout Container
• Set Policy
• My Project → Allow Text Component

Important: If you don’t do this configuration, the component won’t show up in the editor sidebar.

Writing Experience

When enabled:

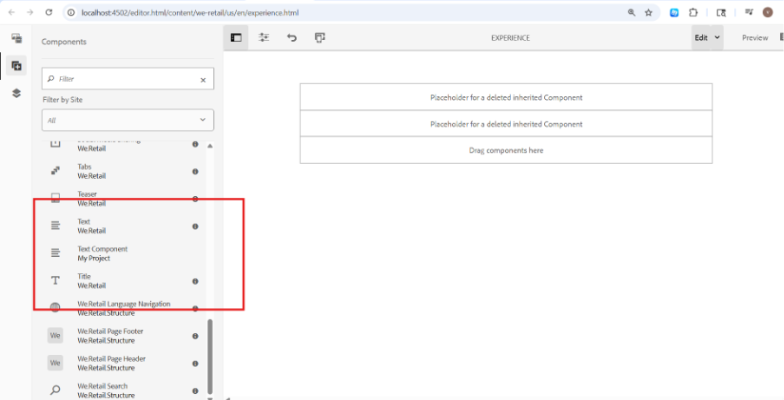

• The component can be dropped onto a page

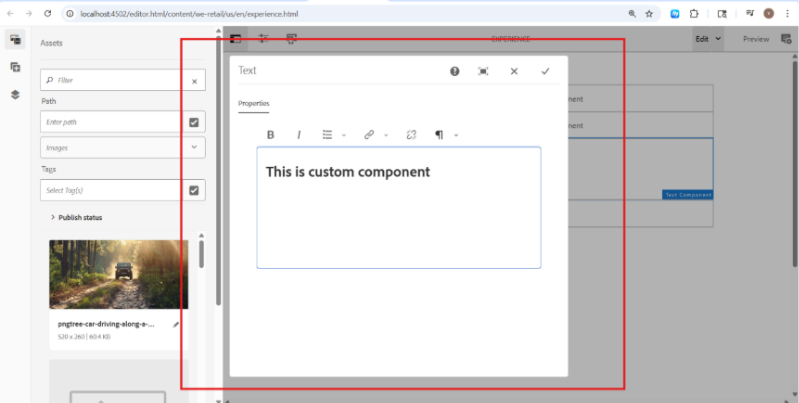

• Authors can enter formatted content via the dialogue
• Content is dynamically rendered on save

This guarantees a seamless and intuitive authoring experience.

Validation on Publish Instance

To verify real-world behaviour:

• The Publish instance is launched
• From the author the page is published
• Output is verified by:

http://localhost:4503/content/we-retail/us/en/experience.html

This confirms that the component works correctly outside the authoring environment.

Key Highlights

The implementation showcases the following key AEM concepts:

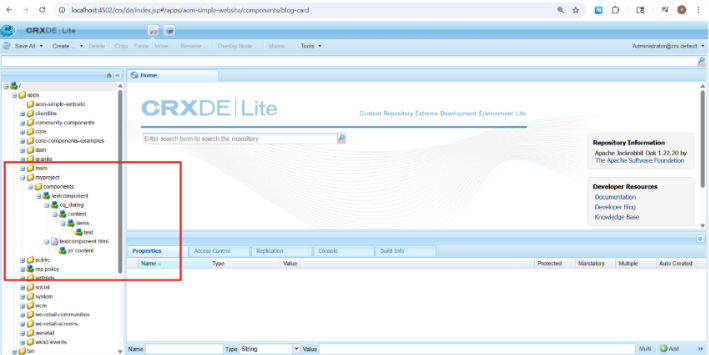

• Project structure and component development using CRXDE
• How to Create Dialogues with Granite UI
• HTL-based rendering and data binding
• Inheritance strategy of the core component
• Policy template configuration
• Maven deployment workflow
• Author vs Publish architecture

Common Challenges

During development a number of typical issues were addressed:

• Component not visible → fixed by template policy configuration
• Property mismatch → verify that dialogue (./text) matches HTL (${properties.text})
• Maven command issues → fixed by setting environment variables properly
• Package deployment confusion solved by reinstalling updated packages

These are real world scenarios for AEM development.

Summary

Building a custom component in AEM is not only about knowing how it is structured but the whole lifecycle of it from creation, configuration, and deployment to validation.

This implementation shows how to combine AEM core functionality with custom development to create scalable, reusable components that meet enterprise standards.
